AS218-35PB Specifications
Manufacturer: Deutsch
Product Category: Circular Connector Receptacle
Connector Type: Receptacle
Number of Positions: 66
Shell Size: 18
Mounting Style: Box Mount, Two-Hole Flange
Contact Type: Gold Plated Pins
Contact Gender: Male Pin
Connector Series: Autosport AS Series
Shell Material: Aluminum Alloy with Black Zinc Finish
Environmental Rating: Sealed Construction (IP67 Rated)
Operating Temperature Range: -55°C to +175°C
Durability: 500 Mating Cycles
MIL Specification: MIL-Spec Qualified
Product Condition: New
Key Features
The AS218-35PB circular connector receptacle is engineered for high-reliability aerospace and military interconnect applications. Because it features gold plated contacts, it delivers excellent conductivity and long-term corrosion resistance. Additionally, the environmentally sealed construction helps protect sensitive connections from dust and moisture intrusion. The rugged aluminum shell further supports reliable performance in harsh operating environments. Therefore, it is well suited for mission-critical systems that demand dependable connectivity.
Applications
Military avionics interface panels
Ground vehicle electronic control units
Secure communications infrastructure
Radar and surveillance assemblies
Aerospace mission systems
Defense power distribution equipment
Rugged industrial control platforms
Product Overview

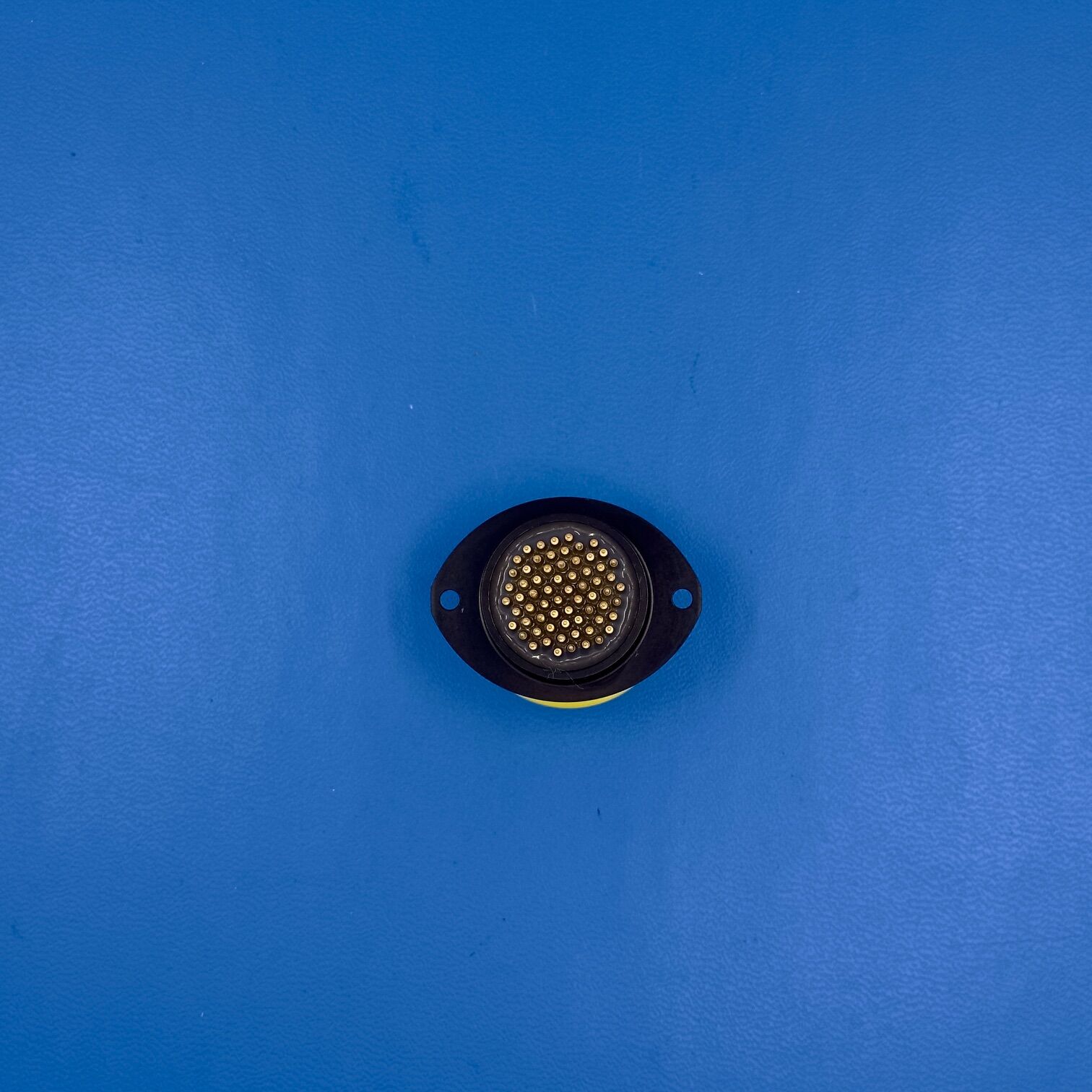

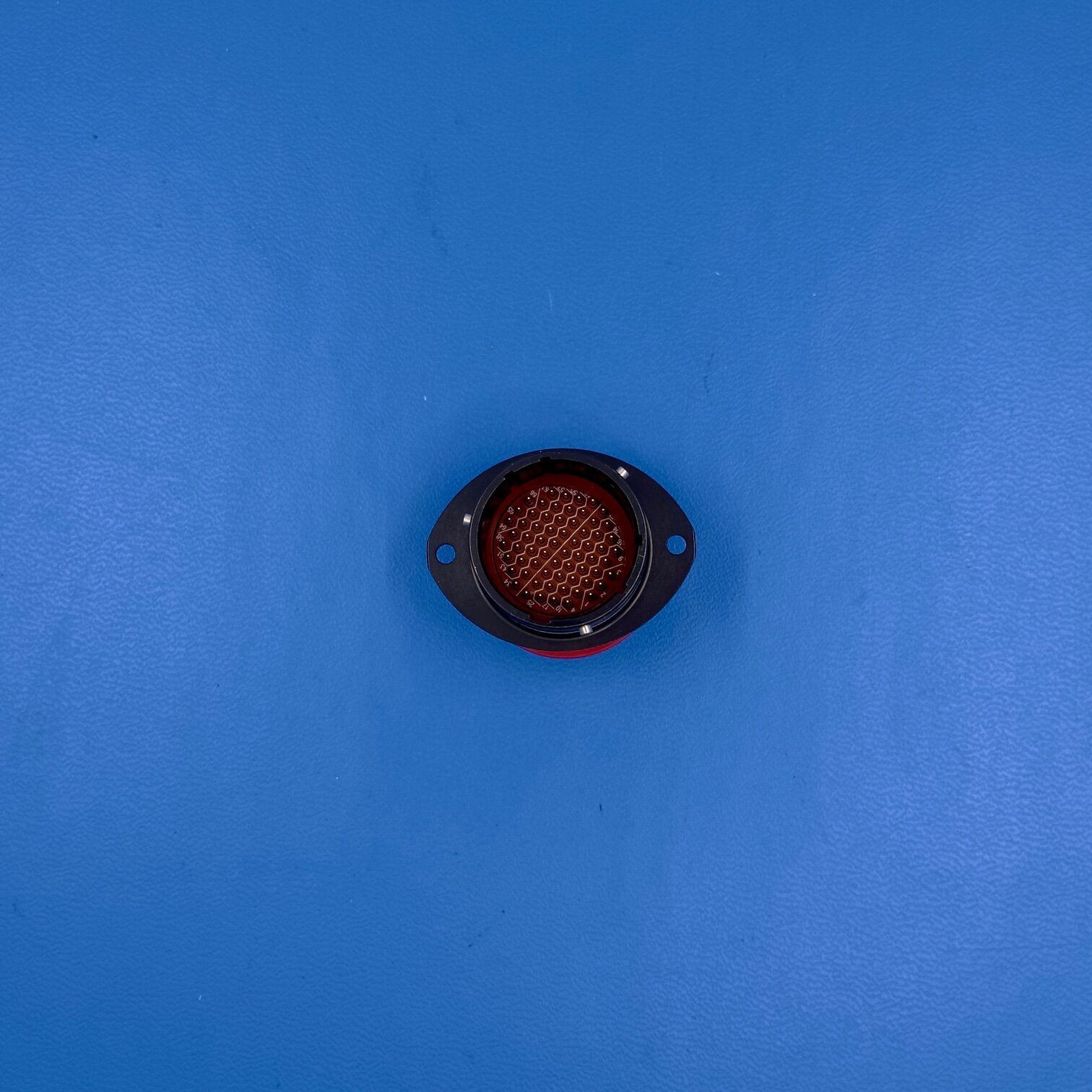

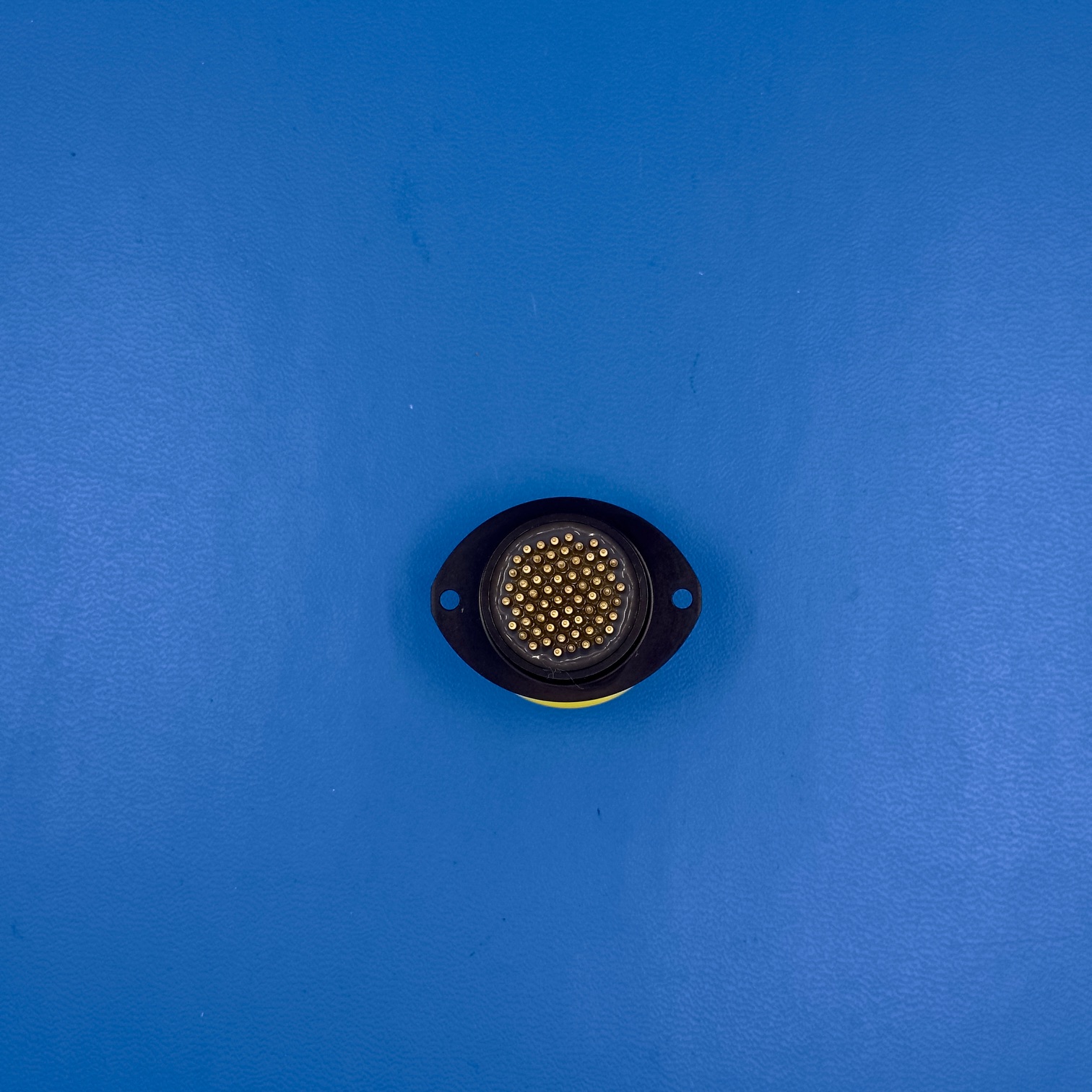

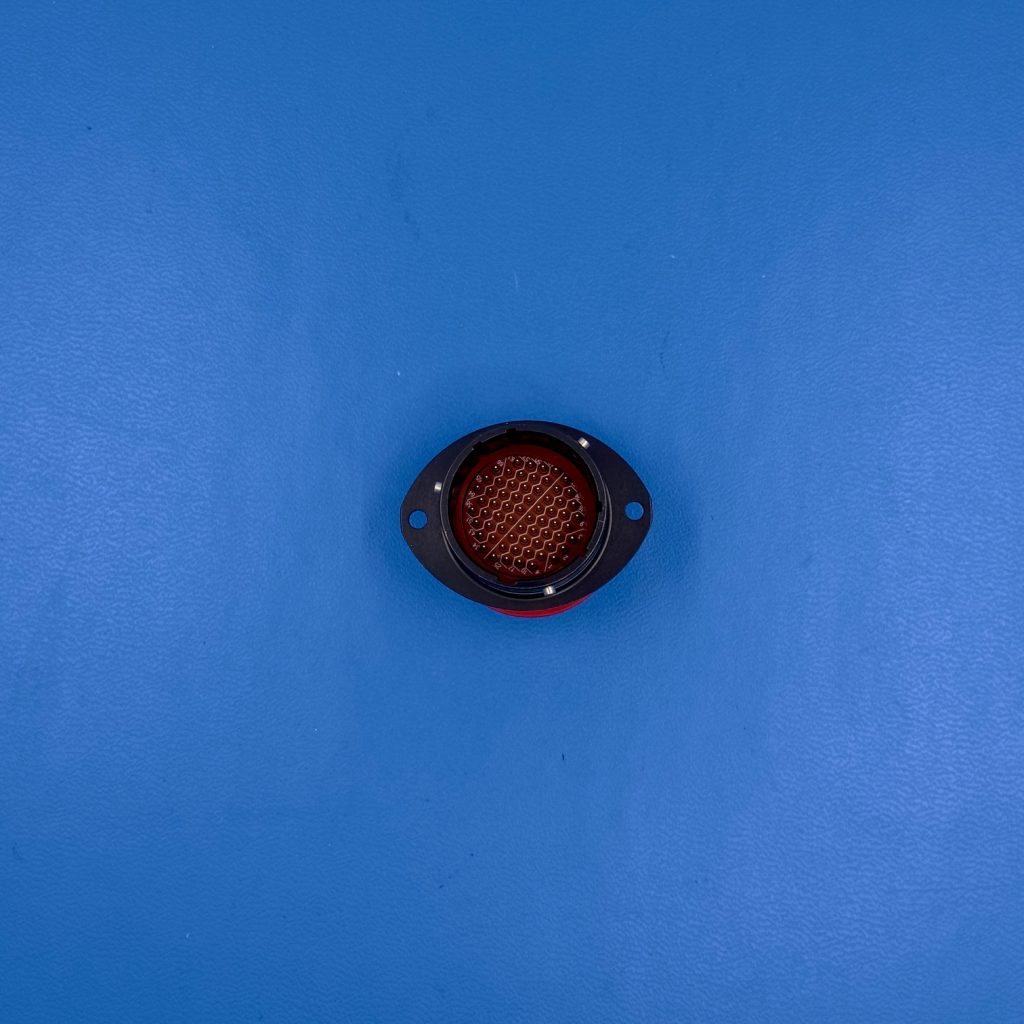

The AS218-35PB from Deutsch is a high-performance Autosport AS Series circular connector receptacle designed for demanding aerospace and defense environments. It supports 66 gold plated pin contacts within a sealed shell size 18 housing. Because of its two-hole flange box mount configuration, the connector installs securely into panel assemblies used in rugged systems.
Moreover, the environmentally sealed design provides strong protection against dust and moisture exposure. This makes the connector particularly suitable for applications that operate in harsh field conditions. The black zinc plated aluminum shell further enhances corrosion resistance and mechanical durability.
In addition, the connector is rated for up to 500 mating cycles, which supports long service life in mission-critical equipment. As a result, engineers and procurement teams rely on the AS218-35PB for stable and repeatable interconnect performance. Cyndtek supplies only new, high-quality electronic components ready for professional deployment.
