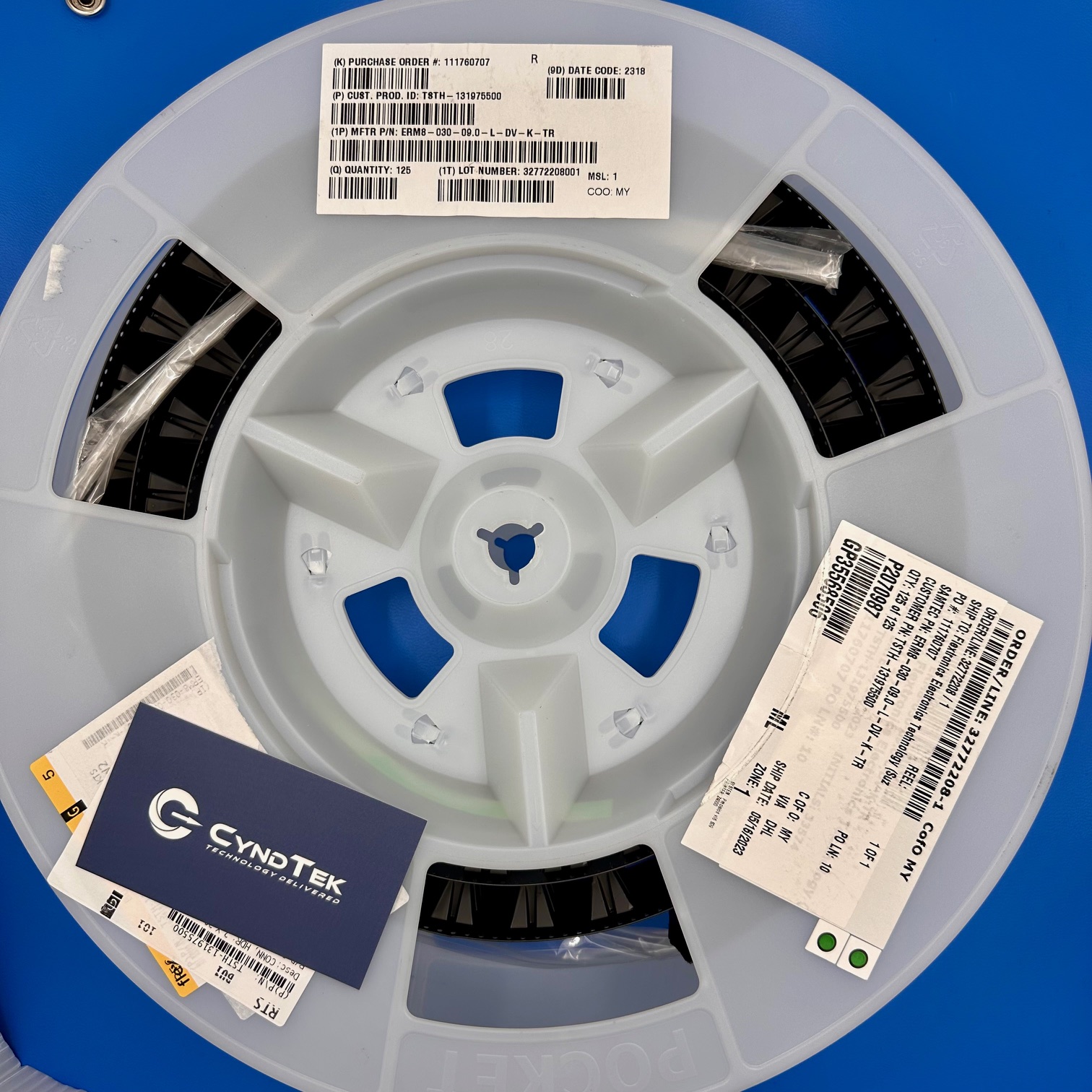

ERM8-030-09.0-L-DV-K-TR

ERM8-030-09.0-L-DV-K-TR Specifications

Manufacturer: Samtec Inc.
Part Number: ERM8-030-09.0-L-DV-K-TR
Product Type: 0.80 mm Edge Rate® Rugged High-Speed Header
Number of Positions: 60
Pitch: 0.80 mm
Number of Rows: 2
Mounting Type: Surface Mount
Contact Finish: Gold
Contact Finish Thickness: 10.0 µin (0.25 µm)
Mated Stacking Heights: 14 mm, 16 mm, 19 mm
Height Above Board: 12.91 mm
Features: Board Guide, Pick and Place
RoHS Status: RoHS Compliant

Key Features

The ERM8-030-09.0-L-DV-K-TR from Samtec is a 60-position, 0.80 mm pitch, dual-row header designed for high-speed, rugged applications. Its Edge Rate® contact system ensures superior signal integrity and durability. The gold-plated contacts provide reliable connections and enhanced longevity. With mated stacking heights of 14 mm, 16 mm, and 19 mm, it offers flexibility in board-to-board designs. The surface mount configuration, along with board guides and pick-and-place features, facilitates easy and accurate PCB assembly.

Applications

High-speed data communication equipment requiring robust board-to-board connections
Industrial automation systems needing reliable mezzanine interconnects
Medical devices where compact and durable connectors are essential
Aerospace electronics demanding high-performance, vibration-resistant interconnect solutions
Telecommunication infrastructure utilizing high-density, high-speed connectors

Product Overview

Engineered to meet the demands of modern high-speed electronic systems. Its Edge Rate® contact system minimizes signal loss and crosstalk, ensuring optimal performance in data-intensive applications. The rugged design withstands mechanical stress, making it suitable for environments subject to vibration and thermal variations. The versatile mated stacking heights allow designers to achieve the desired spacing between PCBs, enhancing design flexibility. Compliance with RoHS standards reflects Samtec’s commitment to environmentally responsible manufacturing.
