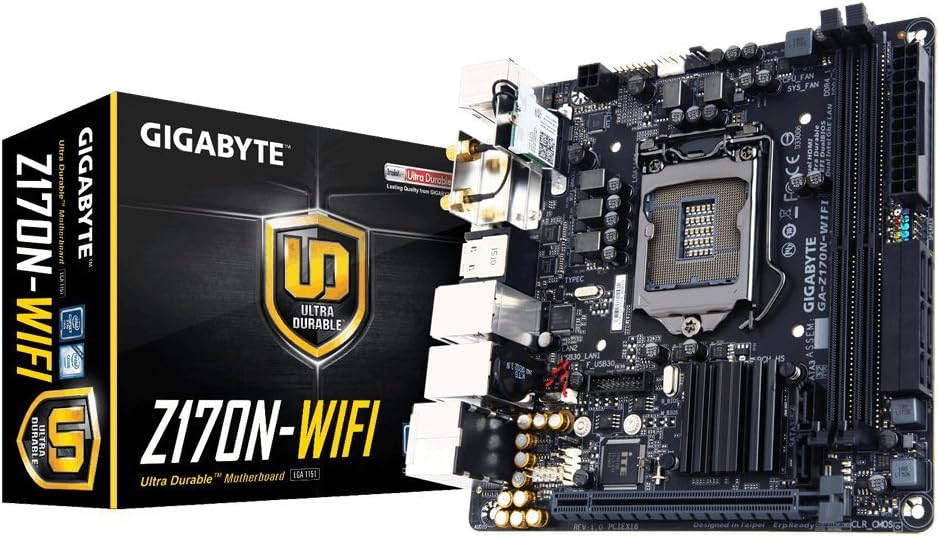

GA-Z170N-WIFI

GIGABYTE GA-Z170N-WIFI (REV 2.0)

• Processor Support:

  • Supports 7th / 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in LGA1151 package
  • BIOS update required for 7th Generation Intel® Core™ processors

• Memory

  • Dual Channel DDR4, 2 DIMMs
  • Supports up to 32 GB of system memory
  • Dual channel memory architecture
  • Supports DDR4 memory modules up to 3600(O.C.) MHz
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Supports non-ECC UDIMM memory modules
  • Supports Extreme Memory Profile (XMP) memory modules

• Expansion Slots:

  • 1 x PCI Express x16 slot (PCI Express 3.0 standard)
  • Supports PCIe x16 slot bifurcation in 2×8 mode by riser card
  • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

• USB

  • Intel® USB 3.0 with USB Type-C™ – The world’s next Universal connector
  • 2 x USB 2.0/1.1 ports available through internal USB header
  • 6 x USB 3.0/2.0 ports (4 on back panel, 2 internal)
  • 1 x USB Type-C™ port on back panel with USB 3.0 support

• Wireless Communication Module:

  • Wi-Fi 802.11 a/b/g/n/ac Dual-Band
  • BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
  • Support for 11ac wireless standard and up to 867 Mbps data rate

• Storage Interface:

  • 1 x M.2 Socket 3 connector on back of motherboard (Socket 3, M key, type 2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  • 2 x SATA Express connectors
  • 6 x SATA 6Gb/s connectors
  • Supports RAID 0, RAID 1, RAID 5, and RAID 10

• Audio:

  • Realtek® ALC1150 codec, High Definition Audio
  • 2/4/5.1/7.1-channel support
  • Support for S/PDIF Out

• LAN:

  • 2 x Intel® GbE LAN chips (10/100/1000 Mbit)

• Back Panel Connectors:

  • 1 x PS/2 keyboard/mouse port
  • 2 x HDMI ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DVI-D port
  • 4 x USB 3.0/2.0 ports
  • 1 x USB Type-C™ port, with USB 3.0 support
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks

• Internal I/O Connectors:

  • Various internal headers for power, fan, USB, audio, and more

• I/O Controller:

  • iTE® I/O Controller Chip

• Unique Features:

  • Support for APP Center
  • Bundled software includes Norton Internet Security (OEM version), Intel® Smart Response Technology, Intel® Wireless Display, and cFosSpeed

• Operating System:

  • Windows® 10 64-bit (for 7th Generation Intel® Processors)
  • Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bit (for 6th Generation Intel® Processors)
